"MYT" 40 ton

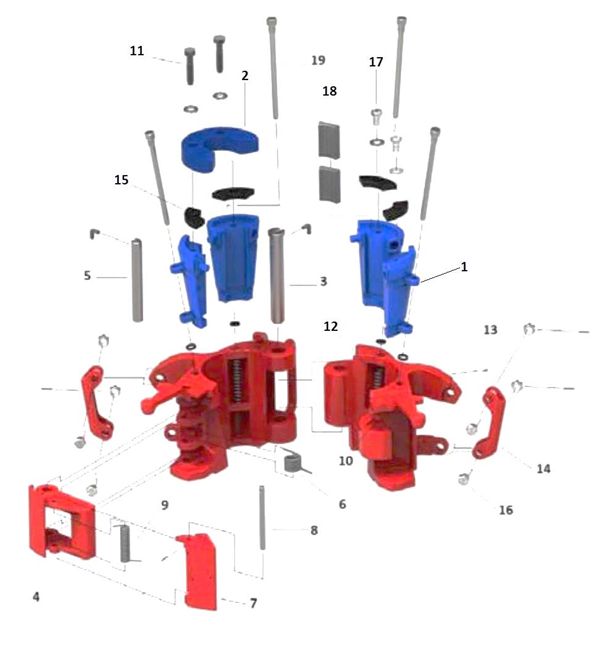

"MYT" PARTS
ITEM PECO PN# QTY Description
1 MYTSS 4 2 7/8" Slip Segments (Matched Set)
2 MYTSPL1 1 2 7/8"  Setting Plate
2 MYTSPL2 1 2 3/8"  Setting Plate
2 MYTSPL3 1 2 1/16"  Setting Plate
2 MYTSPL4 1 1 1/2"  (1.900") Setting Plate
2 MYTSPL5 1 1 1/4"  (1.660") Setting Plate
2 MYTSPL6 1 1"  (1.315") Setting Plate
2 MYTSPL7 1 3/4" (1.050") Setting Plate
3 405 1 Hinge Pin
4 405 1 Latch
5 MYTLP 1 Latch Pin
6 MYTLS 1 Latch Spring
6 MYTLSOS 1 Oversized Latch Spring
7 405 1 Latch Lock
8 MYTLLP 1 Latch Lock Pin
9 MYTLLS 1 Latch Lock Spring
10 MYTDLP 1 Latch Lock Door Pin
11 MYTSPB 2 Setting Plate Bolt w/ Washer
12 MYTSSP 4 Slip Spring
13 405 1 Grease Fitting
14 405 2 Link Block
15 MYTIRP 4 Insert Retainer Plate
16 405 4 Link Block Bolt / Nut / Cotter
17 MYTIRB 2 Insert Retainer Plate Bolt
18 YIN1 8 2 7/8" Inserts (2 7/8" X 2 7/8")
18 YIN2 8 2 3/8" Inserts (2 3/8" X 2 7/8")
18 YIN3 8 2 1/16"  Inserts (2.062" X 2 7/8")
18 YIN4 8 1 1/2"  Inserts (1.900" X 2 7/8")
18 YIN5 8 1 1/4"  Inserts (1.660" X 2 7/8")
18 YIN6 8 1"  Inserts ( 1.315" X 2 7/8")
18 YIN7 8 3/4" Inserts (1.050" X 2 7/8")
19 MYTSB 4 Slip Bolt w/ Washer



 "MYT" Complete Assy.
PECO PN# Description
MYTEL MYT 40 Ton Elevator less Slip Assembly
MYTEL+SLA MYT 40 Ton Elevator Complete with Slip Assembly



PECO PN# Description
MYTSLA1 2 7/8" Slip Assembly for MYT Elevator
MYTSLA2 2 3/8" Slip Assembly for MYT Elevator





**OTHER INSERT & SETTING PLATE SIZES **

AVAILABLE UPON REQUEST
