"YT" 75 ton

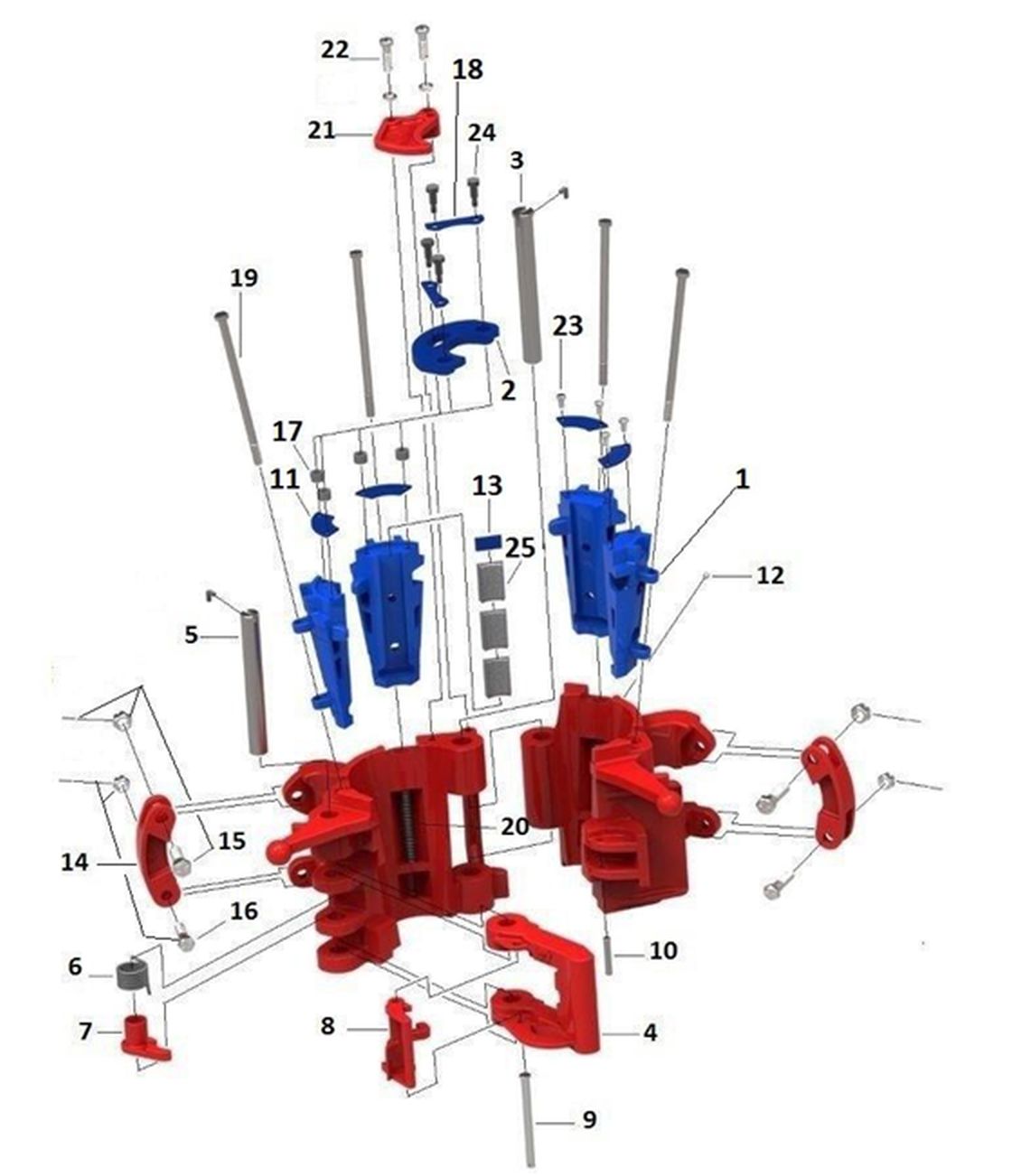

"YT" PARTS

ITEM	PECO PN#	QTY	Description
1	YTSS1	4	3 1/2" Slip Segments (MATCHING SET)
1	YTSS2	4	2 7/8" Slip Segments (MATCHING SET)
2	YTSPL1	1	3 1/2" Setting Plate
2	YTSPL2	1	2 7/8" Setting Plate
2	YTSPL3	1	2 3/8" Setting Plate
2	YTSPL4	1	2 1/16" Setting Plate
2	YTSPL5	1	2" Setting Plate
2	YTSPL6	1	1 1/2" (1.900") Setting Plate
2	YTSPL7	1	1 1/4" (1.660") Setting Plate
2	YTSPL8	1	1" (1.315") Setting Plate
3	405	1	Hinge Pin
4	405	1	Latch
5	405	1	Latch Pin
6	YTLS	1	Latch Spring
7	405	1	Latch Cam
8	405	1	Latch Lock
9	405	1	Latch Lock Pin
10	405	1	Latch Lock Door Pin
11	YTIRP1	4	Insert Retainer Plate (1"-2 7/8")
11	YTIRP2	4	Insert Retainer Plate (3 1/2")
12	405	1	Grease Fitting
13	YTIS1	4	Insert Spacer (2 7/8")
13	YTIS2	8	Insert Spacer (3 1/2")
14	405	2	Link Block
15	405	2	Upper Link Block Bolt, Nut, Cotter
16	405	2	Lower Link Block Bolt, Nut, Cotter
17	YTRB	4	Rubber Bushing
18	YTSPR1	2	Setting Plate Retainer (1- 2 7/8")
18	YTSPR2	2	Setting Plate Retainer (3 1/2")
19	YTSB1	4	Slip Bolt OLD STYLE , THREADS ON BOTTOM
19	YTSB2	4	Slip Bolt NEW STYLE , THREADS ON TOP
20	YTSSP	4	Slip Spring
21	YTGP	1	Guide Plate
22	YTGPB	2	Guide Plate Bolt w/ Washer
23	YTIRB	4	Insert Retainer Plate Bolt
24	YTSPB	4	Setting Plate Bolt
25	YIN1	12	2 7/8" Inserts (2 7/8" X 2 7/8")
25	YIN2	12	2 3/8" Inserts (2 3/8" X 2 7/8")
25	YIN3	12	2 1/16" Inserts (2.062" X 2 7/8")
25	YIN4	12	1 1/2" Inserts (1.900" X 2 7/8")
25	YIN5	12	1 1/4" Inserts (1.660" X 2 7/8")
25	YIN6	12	1" Inserts ( 1.315" X 2 7/8")
25	YIN7	12	3/4" Inserts (1.050" X 2 7/8")
25	YIN8	24	2 7/8" Inserts (2 7/8" x 3 1/2")
25	YIN9	24	3 1/2" Inserts (3 1/2" x 3 1/2")
25	YIN10	24	2 3/8” Inserts (2 3/8” x 3 1/2")

"YT" Complete Assy.

PECO PN#	DESCRIPTION
YTEL	YT 75 Ton Elevator less Slip Assembly
YTEL+SLA	YT 75 Ton Elevator Complete with Slip Assembly

**OTHER INSERT & SETTING PLATE SIZES ** AVAILABLE UPON REQUEST
