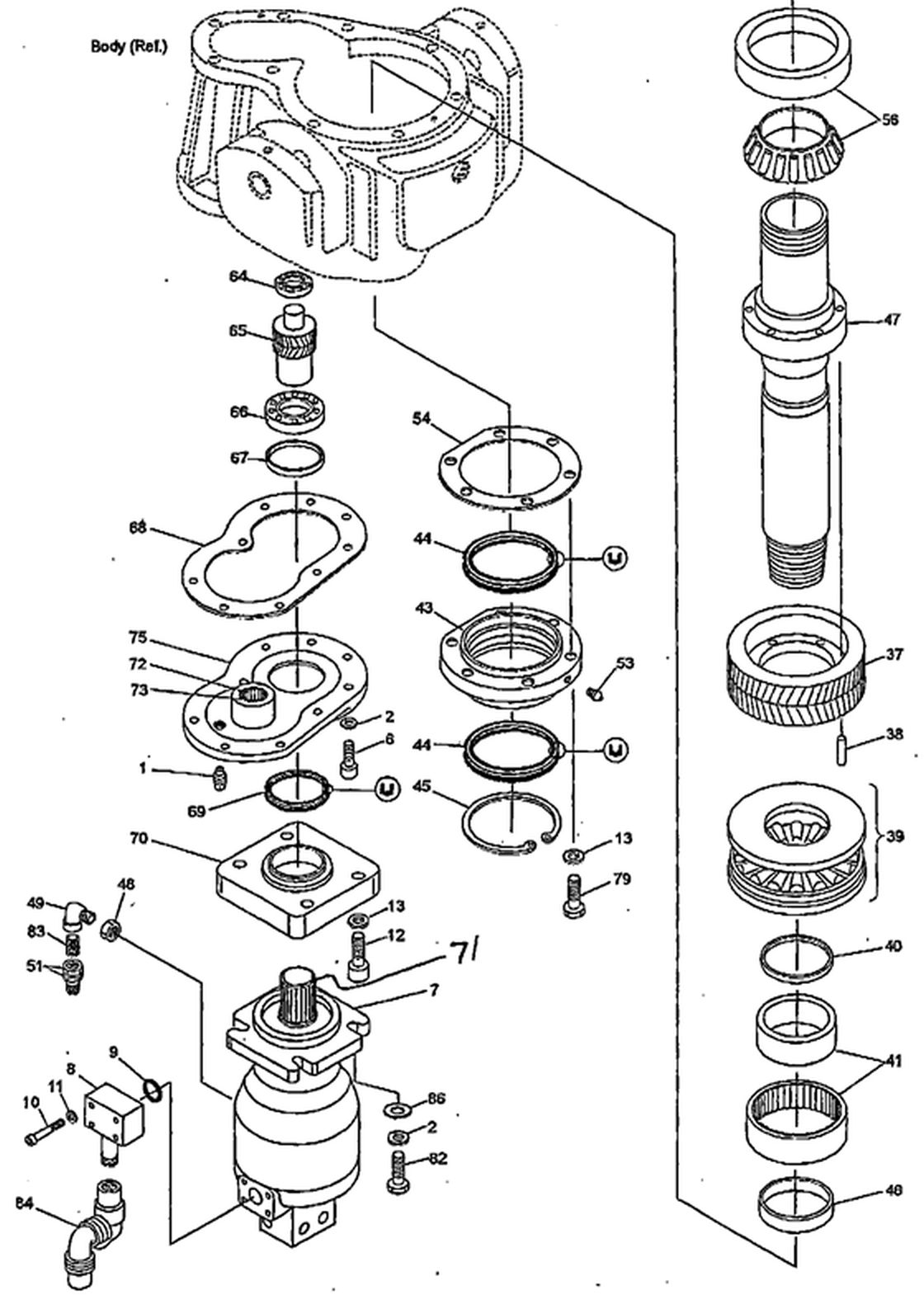

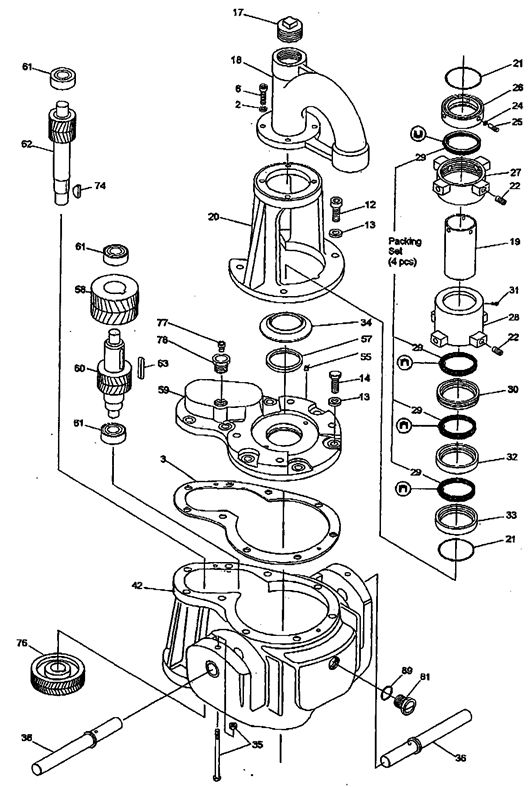

BOWEN 2.5 STYLE









PARTS FOR BOWEN S-2.5

(85ton)  POWER SWIVEL



ITEM PECO PN# QTY Description
1 20627P 1 3/4" Magnetic Drain Plug
2 31827 16 1/2" Lock washer
3 57819P 1 Shim Set
4 51412P 1 Pull Pin Torque Reins
5 SAL2.5 1 Long Stiff Arm
5 SAS2.5 1 Short Stiff Arm
6 22353 14 1/2"-13 x 1 1/2" Long, Socket Head Cap Screw
7 62819P 1 Hydraulic Motor
8 59856P 2 Motor Blocks W/ O-Ring
9 6227-24P 2 Motor Blocks W/ O-Ring
10 59894P 8 3/8" 16 X 2-3/4" Socket Head (Motor)
11 31826 8 3/8" lock washer
12 12019P 8 1/2" 13 X 1-1/2" Socket Head (Lower plate)
13 31828 23 5/8" Lock washer
14 23901P 9 5/8" 11 X 1-1/2 Hex Cap Screws
NOT SHOWN 22344P 2 Dowel Pin
NOT SHOWN 31202P 1 Elevator Bail
17 22377P 1 Gooseneck Pipe Plug
18 82090P 1 Gooseneck Floater
19 FLOW2.5 1 Floating Washpipe
20 82091P 1 Bonnet Floater
21 6230-14P 2 O-Ring For Brass (INCLUDED IN PACKING KIT)
22 NSES 8 Nylon Tip Set Screws for Washpipe
NOT SHOWN 82102P 8 Packing Nut Lock Screw
24 OSES 3 O-Ring for Set Screws (pn# SES)
25 SES 3 Set Screws for Floating Washpipe
26 / 30     32 / 33 BRFLO2.5 1ea Brass Set for Floating Washpipe includes Upper Packing Nut, Spacer & Lantern Ring, Plain Spacer Ring, and Packing Bottom Ring
27 82093P 1 Floater Upper Washpipe Packing Nut
28 82092P 1 Floater Lower Washpipe Packing Nut
29 HAP2.5 1 Hard Packing
29 MEP2.5 1 Medium Packing
29 SOP2.5 1 Soft Packing
31 27636P 1 Packing Nut Grease Fitting
34 44482P 1 Seal Protector Stem
35 31843P 2 Bail Pin Groove Pin
36 51156P 2 Bail Pins
37 56921P 1 Main Gear
38 20746P 6 Ring Gear Groove Pins
39 20489P 1 Load Bearing
40 58640P 1 Spacer Ring Stem
41 20607P 1 Lower Stem Bearing & Race
42 BO2.5 1 Body
43 58641P 1 Lower Bearing Retainer Stem
44 20622P 2 Lower Oil Seal
45 30361P 1 Lower Stem Oil Seal Snap Ring
ITEM PECO PN# QTY Description
46 20615P 1 Lower Stem Wear Ring
47 44481NP 1 New Style Stem
47 44481P 1 Old Style Stem (Slots)
48 61527P 1 #10 o-ring x #12 fp adapter
49 47262P 1 3/4" St. Elbow
51 25097P 1 3/4" Male quick Disconnect
53 53955P 1 Oil Seal Grease Fitting
54 46155P 1 Lower Bearing Retainer Gasket
55 10641 2 Socket Head Pipe Plug
56 20488P 1 Upper Stem Bearing & Race3
57 58620P 1 Upper Oil Seal
58 56121P 1 2nd Reduction Upper Slider Gear
59 57735P 1 Upper Gear Cover Plate
60 56130P 1 Final Reduction Upper Main Gear Pinion
61 56148P 3 Roller Bearings
62 56146P 1 2nd Reduction "Long Skinny" Pinion
63 57750P 1 Cluster Gear Key
64 56151P 1 Upper Motor Drive Gear Bearing
65 56973P 1 1st Reduction "Mt. Drive" Pinion
66 56150P 1 Lower Motor Drive Gear Bearing
67 58644P 1 1st Reduction Pinion Spacer
68 58621P 1 Lower Gear Cover Gasket
69 56152P 1 Motor Drive Oil Seal
70 61526P 1 Motor Adaptor Plate
71 72379P 1 Motor Shafter Adaptor
72 56154P 1 Retainer Ring
73 25158P 1 Lower plate Bearing
74 56156P 1 Long Gear Key
75 57659P 1 Lower Gear Cover Plate
76 56972P 1 First Reduction Lower Slider Gear
77 22177P 1 Relief Vent
78 25389P 1 3/4" Tapped for 1/8" Vent Relief
79 23902P 6 5/8-11 X 1 3/4 Large Hex Head Cap Screws
NOT SHOWN 20605P 1 Saver Sub
81 73109P 1 1/2" NPT Gear Box Sight Glass
82 26539 4 1/2"-13 x 1 1/2" Long, HEX Head Cap Screw
83 35768 1 3/4" Close Nipple
84 SJ11R / SJ11S 2 Style 10 Swivel Joint
85 405 1 Clevis
86 46719P 4 1/2" Special Motor Washers
88 25003P 1 Guard
89 55061P 1 Gear Box Sight Glass 3/4" O-Ring
NOT SHOWN TRRA2.5 1 Torque Rein Roller Assembly
