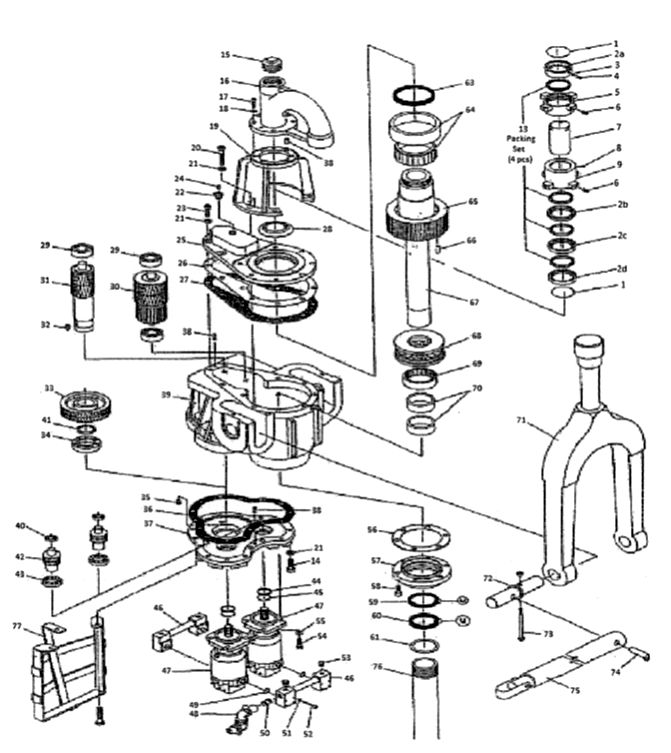

PARTS FOR BOWEN S-3.5
(120ton) POWER SWIVEL
| ITEM |
PECO PN# |
QTY. |
DESCRIPTION |
| 1 |
568-243P * |
2 |
Packing Nut O-Ring |
| 2 |
BRFLO3.5 |
1 set |
Brass Set for Floating Washpipe |
| 2a |
83787P ** |
1 |
Upper Packing Nut Ring |
| 2b |
72357P ** |
1 |
Lantern-Spacer Ring Floater |
| 2c |
72358P ** |
1 |
Spacer Ring Floater |
| 2d |
83790P ** |
1 |
Bottom Ring Floater |
| 3 |
OSES * |
3 |
O-Ring for Set Screws (pn# SES) |
| 4 |
SES |
3 |
Set Screws w/ O-ring Groove |
| 5 |
83788P |
1 |
Upper Packing Nut |
| 6 |
NSES |
8 |
Nylon Tip Set Screws |
| 7 |
FLOW3.5 |
1 |
Floating Washpipe |
| 8 |
27636P |
1 |
Packing Nut Grease Fitting |
| 9 |
83789P |
1 |
Lower Packing Nut |
| 13 |
HAP3.5 |
1 set |
Hard Packing |
| 13 |
MEP3.5 |
1 set |
Medium Packing |
| 13 |
SOP3.5 |
1 set |
Soft Packing |
| 14 |
23040P |
15 |
3/4" - X 2 Cap Screw |
| 15 |
- |
1 |
Gooseneck Plug |
| 16 |
83785P |
1 |
Gooseneck |
| 17 |
23002P |
7 |
1/2" - 13 X 2 Cap Screw |
| 18 |
31827P |
7 |
1/2" Lock Washer |
| 19 |
83786P |
1 |
Bonnet |
| 20 |
23045P |
6 |
3/4" - 10 X 3 1/4 Cap Screw |
| 21 |
- |
32 |
3/4" Lock Washer |
| 22 |
25389P |
1 |
Upper Oil Filler Plug |
| 23 |
23039P |
5 |
3/4"-10 X 1 3/4 Cap Screw |
| 24 |
22177P |
1 |
Relief Fitting |
| 25 |
59300P |
1 |
Top Plate |
| 26 |
27287P |
1 |
Shim Set |
| 27 |
27275P |
1 |
Upper Gear Cover Gasket |
| 28 |
44165P |
1 |
Stem Seal Protector |
| 29 |
59281P |
2 |
Roller Bearing |
| 30 |
59592P |
1 |
Cluster Gear Third Stage Shaft & Gear |
| 31 |
59593P |
1 |
Long Gear Third Stage Shaft & Pinion |
| 32 |
59347P |
1 |
Second Stage Shaft Key |
| 33 |
59346P |
1 |
Lower SLIder First Reduction Gear |
| 34 |
59530P |
1 |
Lower Plate Bearing |
| 35 |
20627P |
1 |
Magnetic Drain Plug |
| 36 |
27276P |
1 |
Lower Gear Cover Gasket |
| 37 |
59531P |
1 |
Lower Plate |
| 38 |
- |
- |
Dowel Pin |
| 39 |
59299P |
1 |
Body |
| 40 |
59280P |
2 |
Upper Motor Drive Gear Bearings |
| 41 |
59795P |
2 |
First Red Gear Spacer |
| 42 |
59294P |
2 |
Motor Drive Gear First Reduction Pinion |
|
| ITEM |
PECO PN# |
QTY. |
DESCRIPTION |
| 43 |
59708P |
2 |
Lower Motor Drive Gear Bearings |
| 44 |
59781P |
2 |
Motor Drive Gear Oil Seal |
| 45 |
20001P |
2 |
Motor Drive Gear Snap-Rings |
| 46 |
35007P |
2 |
Motor Mainfolds |
| 47 |
- |
2 |
Motor |
| 48 |
65439P |
1 |
1 1/4 Style 10 Swivel Joint |
| 49 |
- |
4 |
Manifold O-Ring |
| 50 |
- |
4 |
1 1/4" Connector |
| 51 |
35008P |
16 |
3/8 Lock Washers |
| 52 |
25894P |
16 |
3/8"-16 X 2 3/4 Cap Screws |
| 53 |
- |
- |
3/4" O-Ring Plug |
| 54 |
23881P |
- |
1/2" - 13 X 1 1/2 Hex Bolt |
| 55 |
46719P |
- |
1/2" Motor Special Flat washer |
| 56 |
- |
1 |
Seal Plate Gasket |
| 57 |
27228P |
1 |
Seal Plate |
| 58 |
23038P |
- |
3/4" - 10 X 11 1 1/2 Cap Screw |
| 59 |
27286P |
1 |
Lower Stem Inner Oil Seal |
| 60 |
27416P |
1 |
Lower Stem Outer Oil Seal |
| 61 |
30362P |
1 |
Lower Stem Spiralox Oil Seal |
| 63 |
27285P |
1 |
Upper Stem Oil Seal |
| 64 |
27277P |
1 |
Upper Stem Bearing & Race |
| 65 |
27208P |
1 |
Main Drive Gear |
| 66 |
27238P |
- |
Ring Gear Groove Pin |
| 67 |
44164P |
1 |
Stem |
| 68 |
27279P |
1 |
Load Bearing |
| 69 |
27426P |
1 |
Lower Stem Bearing |
| 70 |
27278P |
2 |
Lower Stem Race |
| 71 |
46690P |
1 |
Elevator Bail |
| 72 |
31482P |
2 |
Bail Pin |
| 73 |
35003P |
2 |
Bail Pin Bolt & Nut |
| 74 |
51413P |
1 |
Torque Rein Pull Pin |
| 75 |
SAL3.5 |
1 |
Long Stiff Arm (Torque Rein) |
| 75 |
SAS3.5 |
1 |
Short Stiff Arm (Torque Rein) |
| 76 |
72197P |
1 |
Saver Sub |
| 77 |
GD3.5 |
1 |
Guard |
| ‡ |
31844P |
- |
Bail Pin Groove Pin |
| ‡ |
35000P |
- |
1" Female Quick Disconnect |
| ‡ |
35004P |
- |
1 1/4 Male High Press Q.D. |
| ‡ |
35005P |
- |
1 1/4 Female High Press Q.D. |
| ‡ |
35006P |
- |
5 Gallon Gear Lube |
| ‡ |
99193P |
- |
Speedi-Sleeve Motor Drive |
| ‡ |
99549P |
- |
Speedi-Sleeve Stem Seal |
| ‡ |
BRFLA3.5 |
- |
Brass Set for Flanged Washpipe |
| ‡ |
FLAW3.5 |
- |
Flanged Washpipe |
|
‡ NOT SHOWN
*INCLUDED IN THE PACKING SET
** SOLD AS A SET ITEM
