5 1/2" TS-100

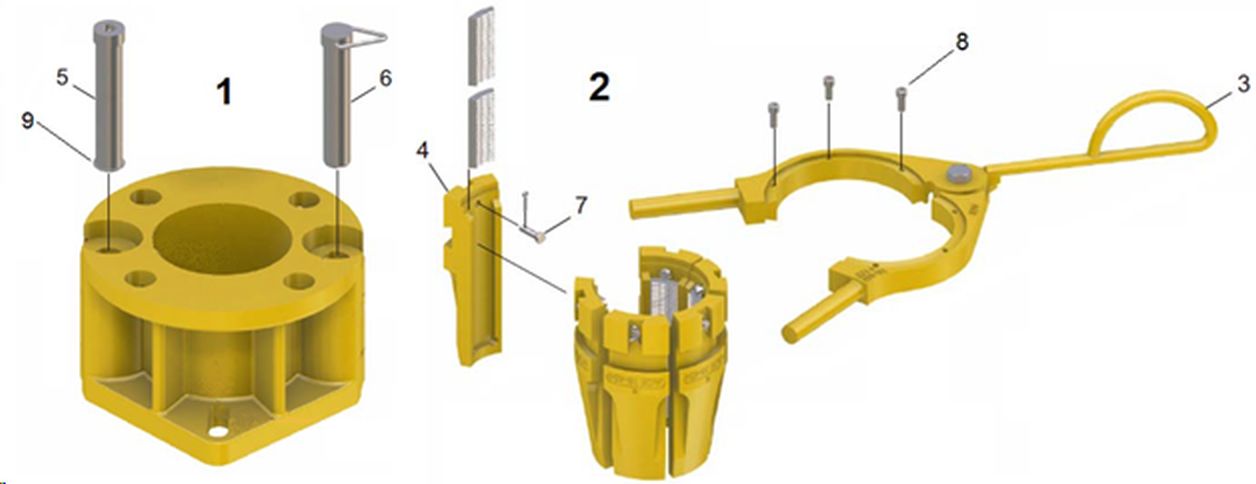

COMPLETE ASSY. & PARTS
ITEM PEO PN# DESCRIPTION
1 TS100-5.5B 5 1/2" TS-100 Bowl
2 T100-5.5S 5 1/2" TS-100 Manual Rotary Slip
3  - Slip Handle Assembly
4  - Slip Segments
5  - Hinge Pin
6  - Removable Hinge Pin w/ Chain
7  - Insert Retainer Pin
8  -  Segment Retainer Pin
9  - Hinge Pin Retainer



 INSERTS
PEO PN# DESCRIPTION
4154-27 2 7/8" X 5 1/2"
4154-30 3" X 5 1/2" (Full Face)
4154-31 3 1/8" X 5 1/2" (Full Face)
4154-32 3 1/4" X 5 1/2" (Full Face)
4154-34 3 1/2" X 5 1/2"
4154-36 3 3/4" X 5 1/2" (Full Face)
4154-40 4" X 5 1/2"
4154-41 4 1/8" X 5 1/2" (Full Face)
4154-42 4 1/4" X 5 1/2" (Full Face)
4154-43 4 3/8" X 5 1/2" (Full Face)
4154-44 4 1/2" X 5 1/2"
4154-46 4 3/4" X 5 1/2" (Full Face)
4154-50 5" X 5 1/2"
4154-54 5 1/2" X 5 1/2"
